DIN 2632, 2633, 2634, 2635

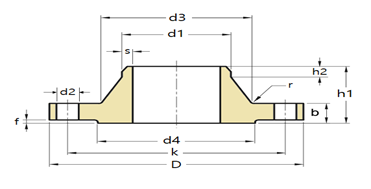

DIN 2632 PN10 WELDNECK FLANGES

PIPE		FLANGE				NECK			BOLTS		RAISED FACE
Size	d1	D	b	k	h1	d3	s	h2	No.	d2	d4	f
10	17.2	90	14	60	35	28	1.8	6	4	14	40	2
15	21.3	95	14	65	35	32	2.0	6	4	14	45	2
20	26.9	105	16	75	38	40	2.3	6	4	14	58	2
25	33.7	115	16	85	38	45	2.6	6	4	14	68	2
32	42.4	140	16	100	40	55	2.6	6	4	18	78	2
40	48.3	150	16	110	42	64	2.6	7	4	18	88	3
50	60.3	165	18	125	45	75	2.9	8	4	18	102	3
65	76.1	185	18	145	45	90	2.9	10	4	18	122	3
80	88.9	200	20	160	50	105	3.2	10	8	18	138	3
100	114.3	220	20	180	52	131	3.6	12	8	18	158	3
125	139.7	250	22	210	55	156	4.0	12	8	18	188	3
150	168.3	285	22	240	55	184	4.5	12	8	22	212	3
200	219.1	340	24	295	62	235	5.9	16	8	23	268	3
250	273.0	395	26	350	68	292	6.3	16	12	23	320	3
300	323.9	445	26	400	68	344	7.1	16	12	23	370	4
350	355.6	505	26	460	68	385	7.1	16	16	23	430	4
400	406.4	565	26	515	72	440	7.1	16	16	27	482	4
500	508.0	670	28	620	75	542	7.1	16	20	27	585	4
600	609.6	780	28	725	80	642	7.1	18	20	30	685	5

DIN 2633 PN16 WELDNECK FLANGES

PIPE		FLANGE				NECK			BOLTS		RAISED FACE
Size	d1	D	b	k	h1	d3	s	h2	No.	d2	d4	f
10	17.2	90	14	60	35	28	1.8	6	4	14	40	2
15	21.3	95	14	65	35	32	2.0	6	4	14	45	2
20	26.9	105	16	75	38	40	2.3	6	4	14	58	2
25	33.7	115	16	85	38	45	2.6	6	4	14	68	2
32	42.4	140	16	100	40	55	2.6	6	4	18	78	2
40	48.3	150	16	110	42	64	2.6	7	4	18	88	3
50	60.3	165	18	125	45	75	2.9	8	4	18	102	3
65	76.1	165	18	145	45	90	2.9	10	4	18	122	3
80	88.9	200	20	160	50	105	3.2	10	8	18	138	3
100	114.3	220	20	180	52	131	3.6	12	8	18	158	3
125	139.7	250	22	210	55	156	4.0	12	8	18	188	3
150	168.3	285	22	240	55	184	4.5	12	8	22	212	3
200	219.1	340	24	295	62	235	5.9	16	12	22	268	3
250	273.0	405	26	355	70	292	6.3	16	12	26	320	3
300	323.9	460	28	410	78	344	7.1	16	12	26	378	4
350	355.6	520	30	470	82	390	8.0	16	16	26	438	4
400	406.4	580	32	525	85	445	8.0	16	16	30	490	4
500	508.0	715	34	650	90	548	8.0	16	20	33	610	4
600	610.0	840	36	770	95	652	8.8	18	20	36	725	5

1) ALL DIMENSIONS ARE IN MILLIMETERS.

DIN 2634 PN25 WELDNECK FLANGES

PIPE		FLANGE				NECK			BOLTS		RAISED FACE
Size	d1	D	b	k	h1	d3	s	h2	No.	d2	d4	f
10	17.2	90	16	60	35	28	1.8	6	4	14	40	2
15	21.3	95	16	65	38	32	2.0	6	4	14	45	2
20	26.9	105	18	75	40	40	2.3	6	4	14	58	2
25	33.7	115	18	85	40	46	2.6	6	4	14	68	2
32	42.4	140	18	100	42	56	2.6	6	4	18	78	2
40	48.3	150	18	110	45	64	2.6	7	4	18	88	3
50	60.3	165	20	125	48	75	2.9	8	4	18	102	3
65	76.1	185	22	145	52	90	2.9	10	8	18	122	3
80	88.9	200	24	160	58	105	3.2	12	8	23	138	3
100	114.3	235	24	190	65	134	3.6	12	8	23	162	3
125	139.7	270	26	220	68	162	4.0	12	8	27	188	3
150	166.3	300	28	250	75	192	4.5	12	8	27	218	3
200	219.1	360	30	310	80	244	6.3	16	12	27	278	3
250	273.0	425	32	370	88	298	7.1	18	12	30	335	3
300	323.9	485	34	430	92	352	8.0	18	16	30	395	4
350	355.6	555	38	490	100	398	8.0	20	16	33	450	4
400	406.4	620	40	550	110	452	8.8	20	16	36	505	4
500	508.0	730	44	660	125	558	10.0	20	20	36	615	4
600	610.0	845	46	770	125	660	11.0	20	20	39	720	5

DIN 2635 PN40 WELDNECK FLANGES

PIPE		FLANGE				NECK			BOLTS		RAISED FACE
Size	d1	D	b	k	h1	d3	s	h2	No.	d2	d4	f
10	17.2	90	16	60	35	28	1.8	6	4	14	40	2
15	21.3	95	16	65	38	32	2.0	6	4	14	45	2
20	26.9	105	18	75	40	40	2.3	6	4	14	58	2
25	33.7	115	18	85	40	46	2.6	6	4	14	68	2
32	42.4	140	18	100	42	56	2.6	6	4	18	78	2
40	48.3	150	18	110	45	64	2.6	7	4	18	88	3
50	60.3	165	20	125	48	75	2.9	8	4	18	102	3
65	76.1	185	22	145	52	90	2.9	10	8	18	122	3
80	88.9	200	24	160	58	105	3.2	12	8	18	138	3
100	114.3	235	24	190	65	134	3.6	12	8	23	162	3
125	139.7	270	26	220	68	162	4.0	12	8	27	188	3
150	166.3	300	28	250	75	192	4.5	12	8	27	218	3
200	219.1	375	34	320	88	244	6.3	16	12	30	285	3
250	273.0	450	38	385	105	306	7.1	18	12	33	345	3
300	323.9	515	42	450	115	362	8.0	18	16	33	410	4
350	355.6	580	46	510	125	408	8.8	20	16	36	460	4
400	406.4	660	50	585	135	462	11.0	20	16	39	535	4
500	508.0	755	52	670	140	562	14.2	20	20	42	615	4

1) ALL DIMENSIONS ARE IN MILLIMETERS.
