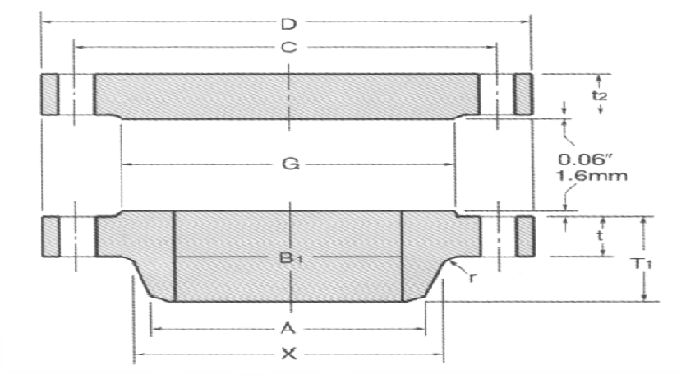

B 16.47 SERIES A CLASS 150 FLANGES
|
Nominal Pipe Size |
Outside Diam. |
O.D.of Raised Face |
Diam. at Base of Hub |
Thickness |
BORE |
Length Thru Hub |
Diam of Hub at Bevel |
Radius at Base of Hub |
DRILLING |
||
|
Bolt Circle Diam. |
Number of Holes |
Diam. Of Holes |
|||||||||
|
D |
G |
X |
t |
TO BE SPECIFIED BY PURCHASER |
T1 |
A |
r |
C |
|||
|
26 |
870 |
749.3 |
676.1 |
68.3 |
120.7 |
660.4 |
9.7 |
806.5 |
24 |
35.1 |
|
|
28 |
927 |
800.1 |
726.9 |
71.4 |
125.5 |
711.2 |
11.2 |
863.6 |
28 |
35.1 |
|
|
30 |
984 |
857.3 |
781.1 |
4.7 |
136.7 |
762.0 |
11.2 |
914.4 |
28 |
35.1 |
|
|
32 |
1060 |
914.4 |
831.9 |
80.8 |
144.5 |
812.8 |
11.2 |
977.9 |
28 |
41.1 |
|
|
34 |
1111 |
965.2 |
882.7 |
82.6 |
149.4 |
863.6 |
12.7 |
1028.7 |
32 |
41.1 |
|
|
36 |
1168 |
1022.4 |
933.5 |
90.4 |
157.0 |
914.4 |
12.7 |
1085.9 |
32 |
41.1 |
|
|
38 |
1238 |
1073.2 |
990.6 |
87.4 |
157.2 |
965.2 |
12.7 |
1149.4 |
32 |
41.1 |
|
|
40 |
1289 |
1124.0 |
1041.4 |
90.4 |
163.6 |
1016.0 |
12.7 |
1200.2 |
36 |
41.1 |
|
|
42 |
1346 |
1193.8 |
1092.2 |
96.8 |
171.5 |
1066.8 |
12.7 |
1257.3 |
36 |
41.1 |
|
|
44 |
1403 |
1244.6 |
1143.0 |
101.6 |
177.8 |
1117.6 |
12.7 |
1314.5 |
40 |
41.1 |
|
|
46 |
1454 |
1295.4 |
1196.8 |
103.1 |
185.7 |
1168.4 |
12.7 |
1365.3 |
40 |
41.1 |
|
|
48 |
1511 |
1358.9 |
1247.6 |
108.0 |
192.0 |
1219.2 |
12.7 |
1422.4 |
44 |
41.1 |
|
|
50 |
1568 |
1409.7 |
1301.8 |
111.3 |
203.2 |
1270.0 |
12.7 |
1479.6 |
44 |
47.8 |
|
|
52 |
1626 |
1460.5 |
1352.6 |
115.8 |
209.6 |
1320.8 |
12.7 |
1536.7 |
44 |
47.8 |
|
|
54 |
1683 |
1511.3 |
1403.4 |
120.7 |
215.9 |
1371.6 |
12.7 |
1593.9 |
44 |
47.8 |
|
|
56 |
1746 |
1574.8 |
1457.5 |
124.0 |
228.6 |
1422.4 |
12.7 |
1651.0 |
48 |
47.8 |
|
|
58 |
1803 |
1625.6 |
1508.3 |
128.5 |
235.0 |
1473.2 |
12.7 |
1708.2 |
48 |
47.8 |
|
|
60 |
1854 |
1676.4 |
1559.1 |
131.8 |
239.8 |
1524.0 |
12.7 |
1759.0 |
52 |
47.8 |
|
(1) Class 150 flanges will be furnished with 0.06"(1.6mm) raised face which is included in 'Thickness' (t) and 'Length through Hub'(T1).
(2) Unit: mm

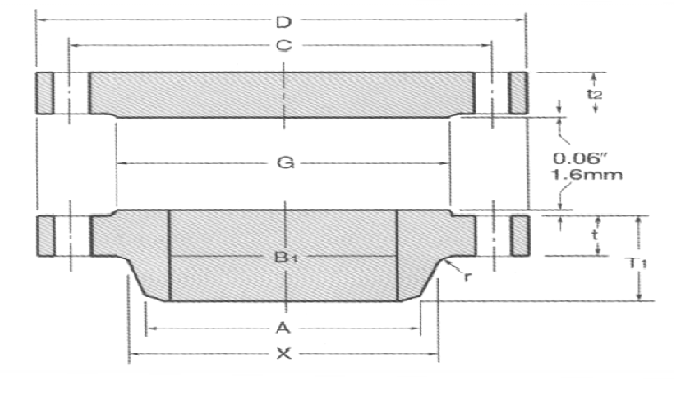

B 16.47 SERIES A CLASS 300 FLANGES
|
Nominal Pipe Size |
Outside Diam. |
O.D.of Raised Face |
Diam. at Base of Hub |
Thickness
t |
Length Thru Hub |
Diam of Hub at Bevel |
Radius at Base of Hub |
DRILLING |
|||
|
Bolt Circle Diam. |
Number of Holes |
Diam. Of Holes |
|||||||||
|
D |
G |
X |
WN |
BL |
T1 |
A |
r |
C |
|||
|
26 |
972 |
749.3 |
720.9 |
79.2 |
84.1 |
184.2 |
660.4 |
9.7 |
876.3 |
28 |
44.5 |
|
28 |
1035 |
800.1 |
774.7 |
85.9 |
90.4 |
196.9 |
711.2 |
11.2 |
939.8 |
28 |
44.5 |
|
30 |
1092 |
857.3 |
827.0 |
91.9 |
95.3 |
209.6 |
762.0 |
11.2 |
997.0 |
28 |
47.8 |
|
32 |
1149 |
914.4 |
881.1 |
98.6 |
100.1 |
222.3 |
812.8 |
11.2 |
1054.1 |
28 |
50.8 |
|
34 |
1207 |
965.2 |
936.8 |
101.6 |
104.6 |
231.6 |
863.6 |
12.7 |
1104.9 |
28 |
50.8 |
|
36 |
1270 |
1022.4 |
990.6 |
104.6 |
111.3 |
241.3 |
914.4 |
12.7 |
1168.4 |
32 |
53.8 |
|
38 |
1168 |
1028.7 |
993.6 |
108.0 |
108.0 |
180.8 |
965.2 |
12.7 |
1092.2 |
32 |
41.1 |
|
40 |
1238 |
1085.9 |
1047.8 |
114.3 |
114.3 |
193.5 |
1016.0 |
12.7 |
1155.7 |
32 |
44.5 |
|
42 |
1289 |
1136.7 |
1098.6 |
119.1 |
119.1 |
200.2 |
1066.8 |
12.7 |
1206.5 |
32 |
44.5 |
|
44 |
1353 |
1193.8 |
1149.4 |
124.0 |
124.0 |
206.2 |
1117.6 |
12.7 |
1263.7 |
32 |
47.8 |
|
46 |
1416 |
1244.6 |
1203.5 |
128.5 |
128.5 |
215.9 |
1168.4 |
12.7 |
1320.8 |
28 |
50.8 |
|
48 |
1467 |
1301.8 |
1254.3 |
133.4 |
133.4 |
223.8 |
1219.2 |
12.7 |
1371.6 |
32 |
50.8 |
|
50 |
1530 |
1358.9 |
1305.1 |
139.7 |
139.7 |
231.6 |
1270.0 |
12.7 |
1428.8 |
32 |
53.8 |
|
52 |
1581 |
1409.7 |
1355.9 |
144.5 |
144.5 |
238.3 |
1320.8 |
12.7 |
1479.6 |
32 |
53.8 |
|
54 |
1657 |
1466.9 |
1409.7 |
152.4 |
152.4 |
252.5 |
1371.6 |
12.7 |
1549.4 |
28 |
60.5 |
|
56 |
1708 |
1517.7 |
1463.5 |
153.9 |
153.9 |
260.4 |
1422.4 |
12.7 |
1600.2 |
28 |
60.5 |
|
58 |
1759 |
1574.8 |
1514.3 |
158.8 |
158.8 |
266.7 |
1473.2 |
12.7 |
1651.0 |
32 |
60.5 |
|
60 |
1810 |
1625.6 |
1565.1 |
163.6 |
163.6 |
273.1 |
1524.0 |
12.7 |
1701.8 |
32 |
60.5 |
- Bore is to be specified by purchaser.
- Class 300 flanges will be furnished with 0.06"(1.6mm) raised face which is included in 'Thickness' (t) and 'Length through
- 'Thickness' (t) and 'Length through Hub'(T1).
- Unit: mm
