DIN 2527

PN 6 PN 10

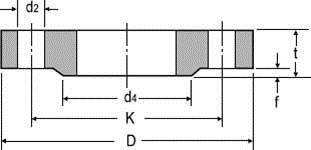

Pipe Size	OD D	PCD K	No. of Holes	Hole dia d2	Thk t	Raised face d4 x f		Pipe Size	OD D	PCD K	No. of Holes	Hole dia d2	Thk t	Raised face d4 x f
10NB	75	50	4	11	12	35 x 2		10NB	90	60	4	14	14	40 x 2
15NB	80	55	4	11	12	40 x 2		15NB	95	65	4	14	14	45 x 2
20NB	90	65	4	11	14	50 x 2		20NB	105	75	4	14	16	58 x 2
25NB	100	75	4	11	14	60 x 2		25NB	115	85	4	14	16	68 x 2
32NB	120	90	4	14	14	70 x 2		32NB	140	100	4	18	16	78 x 2
40NB	130	100	4	14	14	80 x 3		40NB	150	110	4	18	16	88 x 3
50NB	140	110	4	14	14	90 x 3		50NB	165	125	4	18	18	102 x 3
65NB	160	130	4	14	14	110 x 3		65NB	185	145	4	18	18	122 x 3
80NB	190	150	4	48	16	128 x 3		80NB	200	160	4	18	20	138 x 3
100NB	210	170	4	18	16	148 x 3		100NB	220	180	4	18	20	158 x 3
125NB	240	200	8	18	18	178 x 3		125NB	250	210	8	18	22	188 x 3
150NB	265	225	8	18	18	202 x 3		150NB	285	240	8	22	22	212 x 3
175NB	295	255	8	18	20	232 x 3		175NB	315	270	8	22	24	242 x 3
200NB	320	280	8	18	20	258 x 3		200NB	340	295	8	22	24	268 x 3
250NB	375	335	12	18	22	312 x 3		250NB	395	350	12	22	26	320 x 3
300NB	440	395	12	22	22	365 x 4		300NB	445	400	12	22	26	370 x 4
350NB	490	445	12	22	22	415 x 4		350NB	505	460	12	22	26	430 x 4
400NB	540	495	16	22	22	465 x 4		400NB	565	515	16	26	26	482 x 4
500NB	645	600	20	22	24	570 x 4		500NB	670	620	20	26	28	585 x 4

PN 16 PN 25

Pipe Size	OD D	PCD K	No. of Holes	Hole dia d2	Thk t	Raised face d4 x f		Pipe Size	OD D	PCD K	No. of Holes	Hole dia d2	Thk t	Raised face d4 x f
10NB	90	60	4	14	14	40 x 2		10NB	90	60	4	14	16	40 x 2
15NB	95	65	4	14	14	45 x 2		15NB	95	65	4	14	16	45 x 2
20NB	105	75	4	14	16	58 x 2		20NB	105	75	4	14	18	58 x 2
25NB	115	85	4	14	16	68 x 2		25NB	115	85	4	14	18	68 x 2
32NB	140	100	4	18	16	78 x 2		32NB	140	100	4	18	18	78 x 2
40NB	150	110	4	18	16	88 x 3		40NB	150	110	4	18	18	88 x 3
50NB	165	125	4	18	18	102 x 3		50NB	165	125	4	18	20	102 x 3
65NB	185	145	4	18	18	122 x 3		65NB	185	145	8	18	22	122 x 3
80NB	200	160	8	18	20	138 x 3		80NB	200	160	8	18	24	138 x 3
100NB	220	180	8	18	20	158 x 3		100NB	236	190	8	23	24	162 x 3
125NB	250	210	8	18	22	188 x 3		125NB	270	220	8	27	26	188 x 3
150NB	285	240	8	23	22	212 x 3		150NB	300	250	8	27	28	218 x 3
175NB	315	270	8	23	24	242 x 3		175NB	330	280	12	27	28	248 x 3
200NB	340	295	12	23	24	268 x 3		200NB	360	310	12	27	30	278 x 3
250NB	405	355	12	27	26	320 x 3		250NB	425	370	12	30	32	335 x 3
300NB	460	410	12	27	28	378 x 4		300NB	485	430	16	30	34	395 x 4
350NB	520	470	16	27	30	438 x 4		350NB	555	490	16	33	38	450 x 4
400NB	580	525	16	30	32	490 x 4		400NB	620	550	16	36	40	505 x 4
500NB	715	650	20	33	34	610 x 4		500NB	730	660	20	36	44	615 x 4

1) All dimensions are in millimeters.

PN 40

Pipe Size	OD D	PCD K	No. of Holes	Hole dia d2	Thk t	Raised face d4 x f
10NB	90	60	4	14	16	40 x 2
15NB	95	65	4	14	16	45 x 2
20NB	105	75	4	14	18	58 x 2
25NB	115	85	4	14	18	68 x 2
32NB	140	100	4	18	18	78 x 2
40NB	150	110	4	18	18	88 x 3
50NB	165	125	4	18	20	102 x 3
65NB	185	145	8	18	22	122 x 3
80NB	200	160	8	18	24	138 x 3
100NB	236	190	8	23	24	162 x 3
125NB	270	220	8	27	26	188 x 3
150NB	300	250	8	27	28	218 x 3
175NB	350	295	12	30	28	260 x 3
200NB	375	320	12	30	30	285 x 3
250NB	450	385	12	33	32	345 x 3
300NB	515	450	16	33	34	410 x 4
350NB	580	510	16	36	38	465 x 4
400NB	660	585	16	39	40	535 x 4
500NB	755	670	20	42	44	615 x 4

1) All dimensions are in millimeters.
