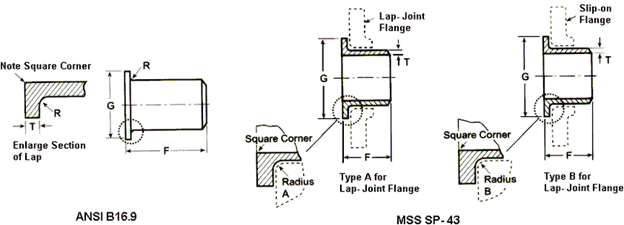

Stub Ends
MSS SP-43 ANSI B16.9 (in mm)
|
Nominal Pipe Size (inches) |
Outside Diameter at Bevel |
Outside Diameter of Barrel |
Length F |
Radius of Fillet R |
Diameter of Lap G |
|||
|
Min. |
Max. |
ANSI |
MSS |
ANSI & MSS Type A |
MSS Type B |
|||
|
1/2 |
21.3 |
20.55 |
22.76 |
76.2 |
50.8 |
3.0 |
0.8 |
35.0 |
|
3/4 |
26.7 |
25.88 |
28.09 |
76.2 |
50.8 |
3.0 |
0.8 |
42.9 |
|
1 |
33.4 |
32.61 |
34.95 |
101.6 |
50.8 |
3.0 |
0.8 |
50.8 |
|
1-1/4 |
42.2 |
41.38 |
43.59 |
101.6 |
50.8 |
4.8 |
0.8 |
63.5 |
|
1-1/2 |
48.3 |
47.47 |
49.94 |
101.6 |
50.8 |
6.4 |
0.8 |
73.2 |
|
2 |
60.3 |
59.54 |
62.38 |
152.4 |
63.5 |
7.9 |
0.8 |
91.9 |
|
2-1/2 |
73.0 |
72.24 |
75.34 |
152.4 |
63.5 |
7.9 |
0.8 |
104.6 |
|
3 |
88.9 |
88.11 |
91.34 |
152.4 |
63.5 |
9.7 |
0.8 |
127.0 |
|
3-1/2 |
101.6 |
100.81 |
104.04 |
152.4 |
76.2 |
9.7 |
0.8 |
139.7 |
|
4 |
114.3 |
113.51 |
116.66 |
152.4 |
76.2 |
11.2 |
0.8 |
157.2 |
|
5 |
141.3 |
140.51 |
144.35 |
203.2 |
76.2 |
11.2 |
1.5 |
185.7 |
|
6 |
168.3 |
167.49 |
171.27 |
203.2 |
88.9 |
12.7 |
1.5 |
215.9 |
|
8 |
219.1 |
218.29 |
222.07 |
203.2 |
101.6 |
12.7 |
1.5 |
269.7 |
|
10 |
273.1 |
272.26 |
277.19 |
254.0 |
127.0 |
12.7 |
1.5 |
323.9 |
|
12 |
323.9 |
323.06 |
327.99 |
254.0 |
152.4 |
12.7 |
1.5 |
381.0 |
|
14 |
355.6 |
354.81 |
359.92 |
304.8 |
152.4 |
12.7 |
1.5 |
412.8 |
|
16 |
406.4 |
405.61 |
410.97 |
304.8 |
152.4 |
12.7 |
1.5 |
469.9 |
|
18 |
457.2 |
456.41 |
462.03 |
304.8 |
152.4 |
12.7 |
1.5 |
533.4 |
|
20 |
508.0 |
507.21 |
514.10 |
304.8 |
152.4 |
12.7 |
1.5 |
584.2 |
|
22 |
558.8 |
558.01 |
564.90 |
304.8 |
152.4 |
12.7 |
1.5 |
641.4 |
|
24 |
609.6 |
608.81 |
615.70 |
304.8 |
152.4 |
12.7 |
1.5 |
692.2 |
1) ALL DIMENSIONS ARE IN MILLIMETERS.
